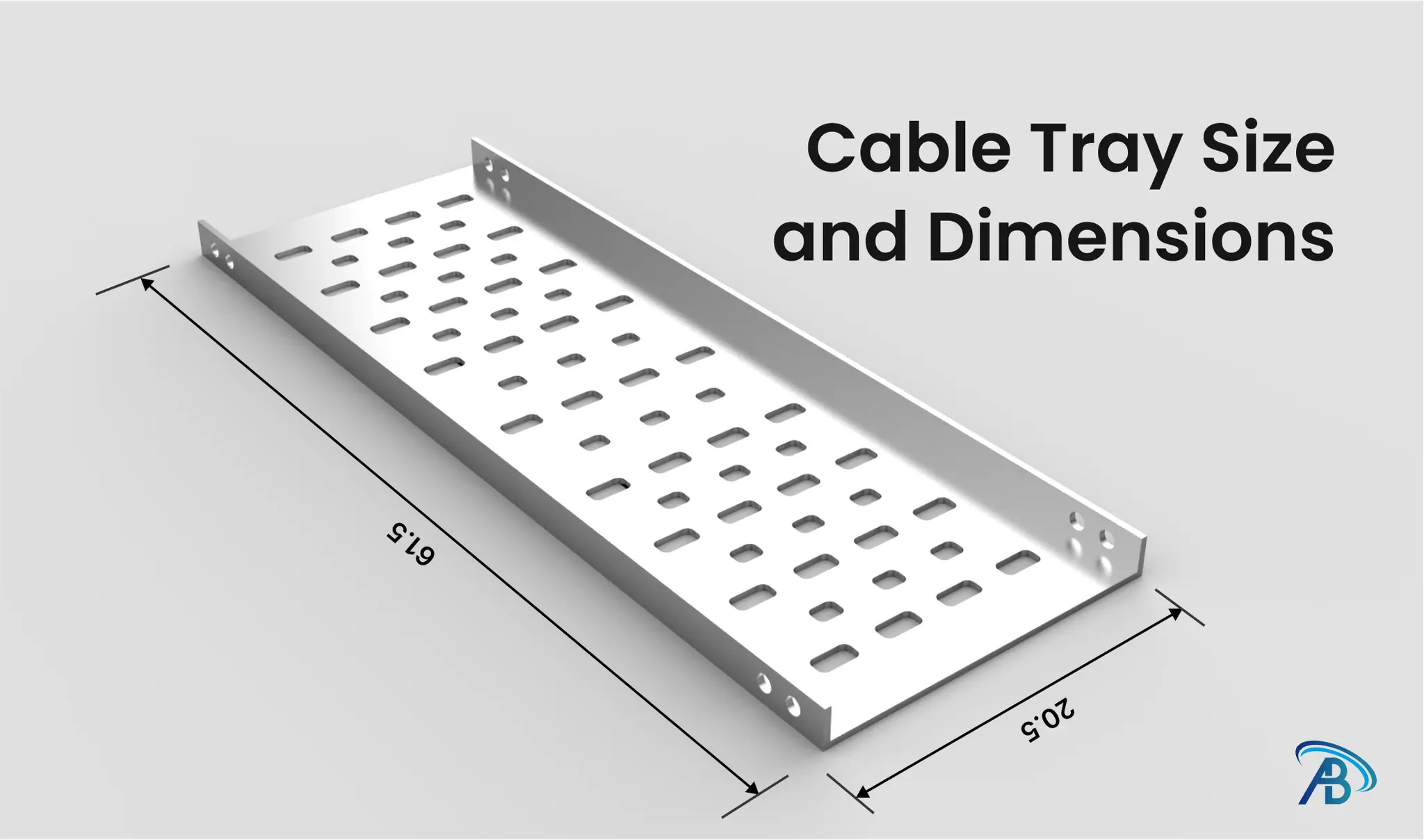

Cable Tray Size and Dimensions

When it comes to organizing and supporting electrical andcommunication cables, cable trays are essential and appropriate. These trays help manage cables more effectively, ensuring safety and efficiency during installations.

Selecting the right size and dimension of a cable tray is important for several different reasons. It not only affects the performance of the cables but also impacts the overall maintenance.

So, whether you're a newbie in the electrical field or a seasoned professional, understanding cable tray sizes and dimensions is crucial.

Overview of Sizes & Dimension Cable Trays

Cable tray dimensions can vary depending on the type, material, and manufacturer. So, the list below contains some common dimensions for different types of cable trays:

Note: These are general size ranges, and specific dimensions may vary depending on the manufacturer and application.

Cable Tray Size Calculation

Calculating the correct cable tray size involves considering several factors:

1. Cable size and quantity
2. Cable type (power, data, or control)
3. Routing requirements (horizontal, vertical, or diagonal)
4. Space constraints
5. Load capacity
6. Application-specific standards

Here's a step-by-step guide to calculate cable tray size:

A) Choose a cable tray type:

Select a tray type (ladder, perforated, solid-bottom, or channel) based on the application and cable requirements.

Calculate the required tray width:

Use the following guidelines:

- For ladder trays: 1.5 to 2 times the total cable cross-sectional area
- For perforated trays: 1.25 to 1.5 times the total cable cross-sectional area
- For solid-bottom trays: 1.5 to 2 times the total cable cross-sectional area
- For channel trays: 1 to 1.25 times the total cable cross-sectional area

> Calculate the required tray depth:

- For horizontal trays: 1.5 to 2 times the largest cable diameter
- For vertical trays: 2 to 3 times the largest cable diameter

B) Determine the required tray length:

Calculate the length based on the routing requirements and space constraints.

> Check load capacity:

Ensure the selected tray can support the total weight of the cables and any additional loads.

> Consult manufacturer guidelines

Verify the calculated size with the manufacturer's recommendations and application-specific standards.

Remember, it's essential to oversize the cable tray slightly to accommodate future cable additions or upgrades.

Why pay attention to sizes and dimensions?

Choosing the right cable tray size is very important. A tray that is too small can lead to overheating or cable damage. On the other hand, a tray that's too large may lead to unnecessary expenses and wasted space.

Here’s a brief overview of what dimensions matter when choosing cable trays:

Width:

This is the measure across the tray and determines how many cables it can hold.

Height:

Height affects the volume of cables that can fit. Some projects need more depth than others.

Length:

Length depends on your space. You want to ensure adequate coverage without empty gaps.

Loading Capacity:

This indicates how much weight the tray can handle before risking deformation or breakage.

Important factors to consider while deciding on Cable Tray dimensions:

1. Cable Size and Type

Types:

Different cables (low voltage, medium voltage, fiber optic) have different sizing requirements. Assess the type you will be using.

Size:

Measure the outer diameter of your cables to determine the necessary spacing in the tray.

2. Growth Expectancy

Plan for future expansion. It's more cost-effective to install slightly larger trays than to replace them later.

3. Environmental Factors

Indoor vs. Outdoor: Trailers used outdoors might require larger dimensions to accommodate potential natural obstructions.

4. Local Regulations

Be familiar with local codes like the National Electrical Code (NEC). They often specify minimum sizes for cable trays in particular applications.

Cable Tray Loading Capacity

The loading capacity of a cable tray is determined by its material and design. Be careful to check:

Thermal Management:

Sooner or later, cables generate heat. Loading capacity also entails considering how many cables vent heat effectively.

Plate Thickness and Material:

Larger thickness and stronger materials often lead to higher capacities.

Specific Sizing Examples:

These are general size guidelines issued by National Electrical Manufacturers Association (NEMA). Therefore, it’s wise to consult manufacturer specifications for exact arrangements.

Conclusion

When it comes to cable tray sizes and dimensions, understanding key aspects simplifies electrical installations. It helps in preventing future issues, such as overloading or inefficient use of space.

So remember to think about:

• The type of cables.
• Future expansions.
• Environmental settings.
• Local regulations.

Using this guide can make selecting the appropriate cable tray easier, helping your installation project succeed smoothly. Don't forget to analyze your needs and specifications closely.
