Cassette AC Size and Dimensions: Your Complete Guide

Last Updated: 29.8.2024

Cassette AC Size and Dimensions: Your Complete Guide

Installing a cassette AC is just the beginning. To ensure optimal performance, energy efficiency, and comfort, selecting the right cassette AC size and dimensions for your space is crucial. In this comprehensive blog, we will delve into the world of cassette AC sizing and dimensions, providing you with all the necessary information to make an informed decision to choose the perfect cassette AC.

Lets dive in!

What is Cassette AC?

Cassette AC systems, also known as cassette units or ceiling-mounted ACs, are a type of air conditioning system designed for efficient and discreet cooling. They consist of a compact, rectangular unit installed in the ceiling, making them ideal for various applications.

Factors to Consider When Choosing a Cassette AC Size

Selecting the right cassette AC size is crucial for efficient cooling, energy savings, and comfort. Consider the following key factors to ensure you choose the perfect fit for your space.

1. Room Size and Square Footage

Measure the length and width of the room to calculate the square footage. For example, a 12x15 feet room has an area of 180 square feet. Multiply the area by 120 BTU per square foot to determine the minimum required BTU capacity

2. Climate and Region

Consider the climate conditions of your region, including temperature, humidity, and sunlight exposure. This will help you determine the suitable BTU capacity and features required for effective cooling.

3. Indoor Heat Load

Calculate the indoor heat load by considering factors like:

  • Number of occupants and their activity level
  • Lighting and electrical appliances
  • Insulation and window size
  • Shading and window orientation

4. Energy Efficiency and Labeling

Look for energy-efficient cassette ACs with high Energy Efficiency Ratios (EER) and Seasonal Energy Efficiency Ratios (SEER). Check for energy labels and certifications like ENERGY STAR.

5. Innovative Technologies and Features

Consider advanced features like:

  • Inverter technology for energy savings
  • Air purification and filtration systems
  • Smart sensors and Wi-Fi connectivity
  • Quiet operation and noise reduction

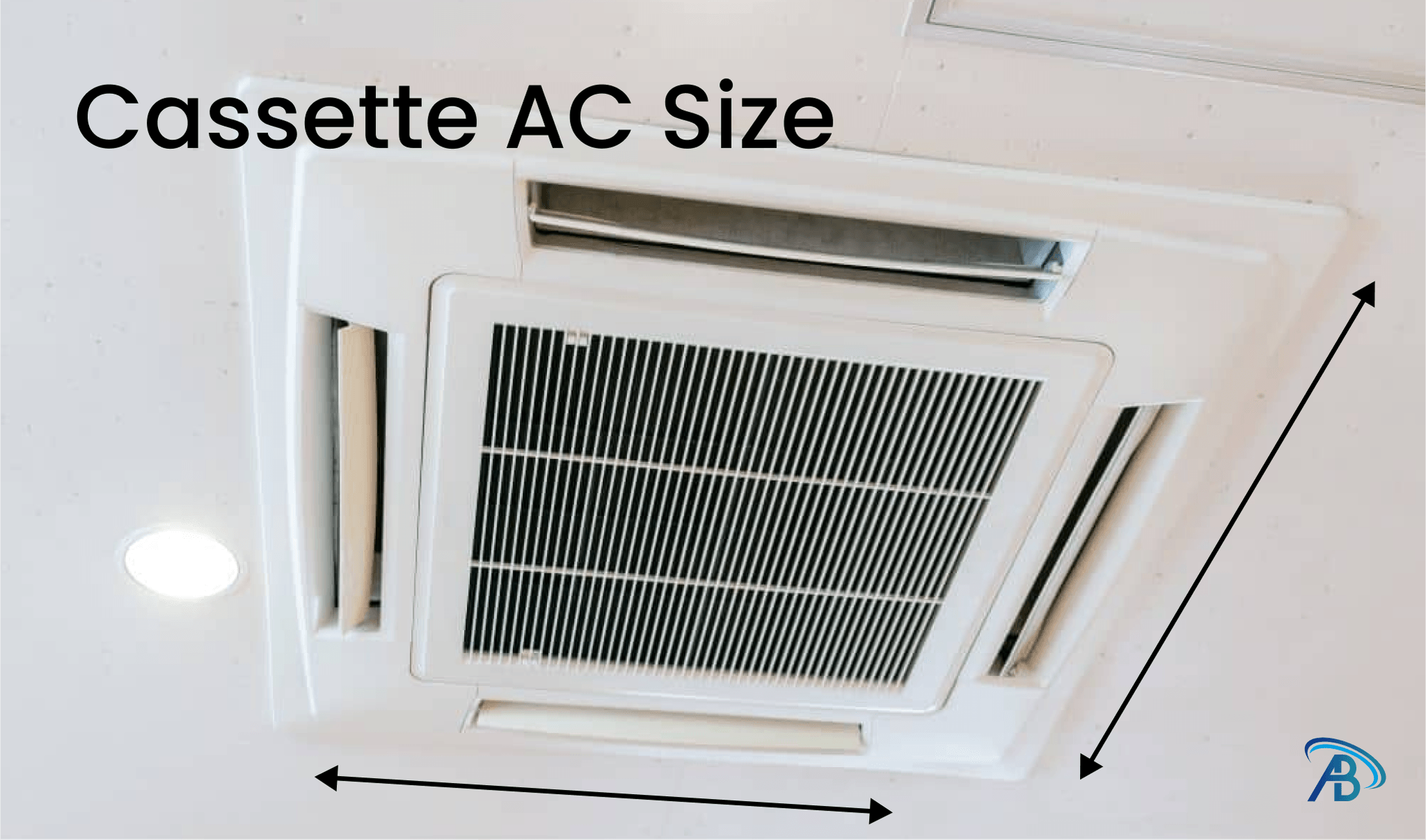

What are the Main Types of Cassette AC Size

The main types of cassette AC sizes are

one way Cassette AC Size

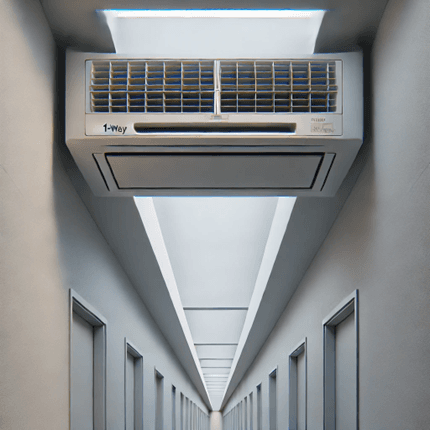

1 -Way Cassette AC Size Image

one way cassette AC size is the smallest, with airflow in only one direction, making it ideal for narrow, rectangular rooms or corridors. These units are typically smaller in size, ranging from approximately 600x600mm to 800x800mm.

Two way Cassette AC Size

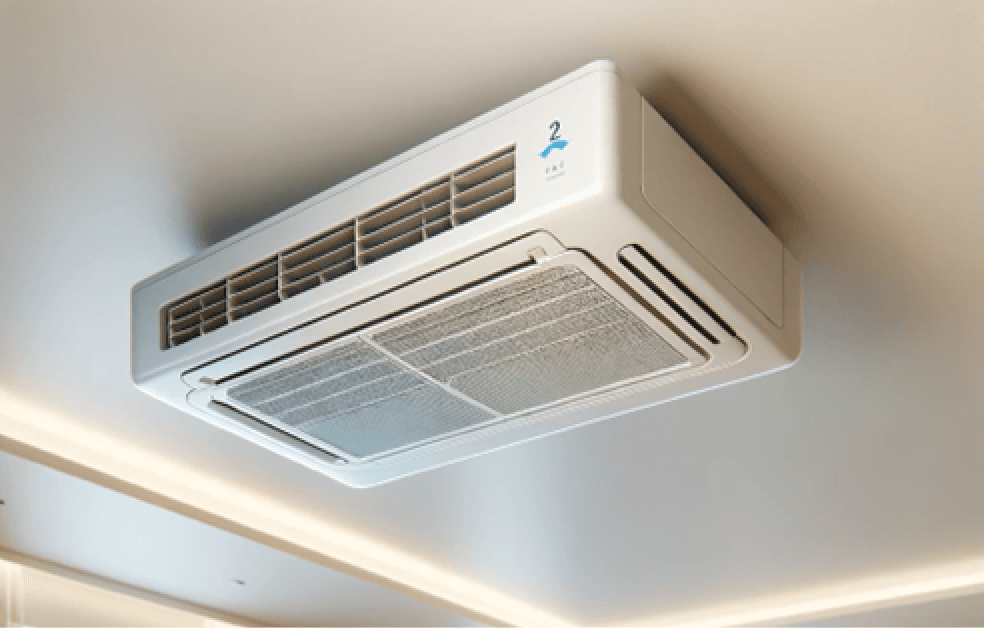

2-Way Cassette AC Size Image

The two way cassette AC size is a step up, with airflow in two directions, making it suitable for medium-sized rooms or open spaces. These units are medium in size, ranging from approximately 800x800mm to 1000x1000mm.

Four way Cassette AC Size

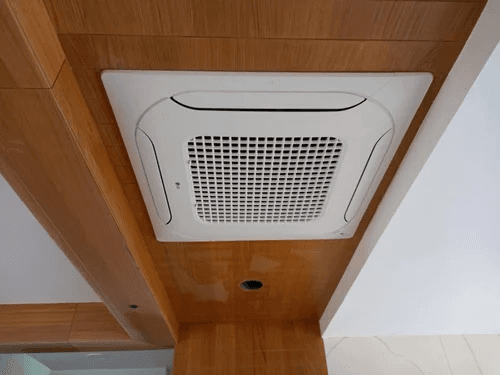

4-Way Cassette AC Size Image

The four way cassette AC size is the largest, with airflow in four directions, making it suitable for larger rooms, open spaces, or areas with multiple zones. These units are larger in size, ranging from approximately 1000x1000mm to 1200x1200mm.

To understand it better, refer the below table

Cassette AC Size in Inches and Dimensions with Approximate prices

Type of Cassette AC Size in Inches Dimensions in Inches
1-Way Cassette AC 24 x 24 inch 23.6 x 23.6 x 7.9
2-Way Cassette AC 36 x 36 inch 31.5 x 31.5 x 9.8
4-Way Cassette AC 48 x 48 inch 39.4 x 39.4 x 11.8
4-Way Large Cassette AC 60 x 60 inch 47.2 x 47.2 x 13.8

Some of the popular Cassette AC Sizes in India

The most popular cassette AC sizes in India, including Daikin and Samsung

1. Daikin Cassette AC Sizes

Daikin offers a range of cassette AC sizes to suit different spaces and needs. Here are some of the most popular ones:

  • Daikin One Way Cassette AC Size: 48x48 inches (1210x1210x250 mm)
  • Daikin 4 Way Cassette AC Size: 60x60 inches (1520x1520x250 mm)

In addition to the indoor unit size, it's also important to consider the outdoor unit size, Outdoor Unit is the external component of a cassette air conditioning system, typically installed outside a building or in a remote location. . Here are the dimensions for Daikin's outdoor units:

  • Daikin One Way Cassette AC Outdoor Unit: 765x285x550 mm
  • Daikin 4 Way Cassette AC Outdoor Unit: 935x320x700 mm

2. Samsung Cassette AC Sizes

Samsung also offers a range of cassette AC sizes, the popular including:

  • Wind Free Cassette AC: 40x40 inches (1010x1010x245 mm)

Note: (Although the dimensions may vary slightly between brands, popular cassette AC sizes in India include: 24"-60" one-way cassette ACs, 48"-60" four-way cassette ACs, 1-2 ton outdoor units This range is consistent across top brands like Daikin, Samsung, LG, Hitachi, and Haier, with minimal variations in dimensions.)

Conclusion

Understanding the cassette size and dimensions is crucial when selecting the perfect air conditioning solution for your space. By considering factors like room size, insulation, and cooling requirements, remember to also check the dimensions of the unit to ensure a seamless fit in your ceiling. With this knowledge, you can make an informed decision and enjoy a comfortable and cooling environment, all while optimizing energy efficiency and minimizing costs.
