The Ultimate Guide to Perforated Cable Trays

Last Updated: 30.8.2024

The Ultimate Guide to Perforated Cable Trays

In the fast-paced world of electrical infrastructure, cable management is important for ensuring efficient and safe power distribution. Among various cable management solutions, perforated cable trays have emerged as a popular choice for industries and institutions worldwide.


This blog aims to provide a comprehensive overview of perforated cable trays, covering their types, sizes, materials, and applications. We will also explore the benefits of using perforated cable trays, including improved cable protection, reduced installation time, and enhanced aesthetics. Whether you're a skilled professional or a curious learner, this blog holds a valuable resource, offering insights and expertise on all aspects of perforated cable trays.


What is a Perforated Cable Tray?

A perforated cable tray is a type of cable management system consisting of a tray with perforations or holes to facilitate cable routing and management. These trays are designed to protect cables from damage, tampering, and environmental factors while providing a secure and organized pathway for cable routing.

Types of Perforated Cable Trays:

Perforated cable trays come in various designs and materials to cater to diverse industry requirements. Some common types include:

1. Gi Perforated Cable Tray:


Made from galvanized iron (GI), these trays offer excellent corrosion resistance and durability.

2. Perforated Type Cable Tray:


This type features a series of holes or perforations to facilitate cable entry and exit.

3. Stainless Steel Perforated Cable Tray:


Ideal for harsh environments, these trays are resistant to corrosion and chemical damage.

4. Aluminum Perforated Cable Tray:


Lightweight and corrosion-resistant, these trays are suitable for applications where weight is a concern.

5. Plastic Perforated Cable Tray:


Made from high-quality plastics, these trays are ideal for applications where corrosion is a concern.

Perforated Cable Tray Sizes

Perforated cable trays are available in a range of sizes to accommodate different cable diameters and industry requirements. Common sizes include:

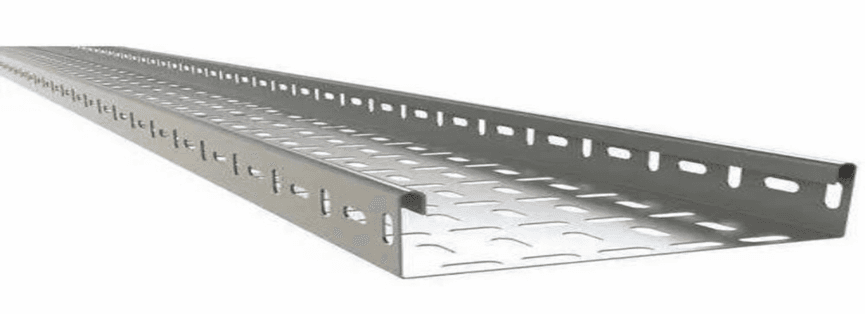

Perforated Cable Tray Sizes image

  • Width: 50 mm (2 inches) to 600 mm (24 inches)
  • Height: 25 mm (1 inch) to 100 mm (4 inches)
  • Length: 2.5 meters (8.2 feet) to 5 meters (16.4 feet)
  • Thickness: 1.6 mm (16 gauge) to 2.5 mm (12 gauge)

Please note that these are standard sizes, and custom sizes can also be manufactured as per the specific needs. Additionally, the sizes may differ slightly depending on the manufacturer and region.

Benefits of Perforated Cable Trays

  • Perforated cable trays offer several advantages, including:
  • Improved Cable Management: Secure and organized cable routing reduces the risk of damage and tampering.
  • Enhanced Safety: Protects cables from environmental factors, ensuring safe power distribution.
  • Increased Efficiency: Helps in simplifying cable installation and maintenance.
  • Cost-Effective: Reduces cable replacement costs and extends cable lifespan.
  • Flexibility: Perforated cable trays can be easily modified to accommodate changing cable management needs.

Applications of Perforated Cable Trays

Perforated cable trays are widely used in various industries, including:

  • Power Generation and Distribution
  • Industrial Manufacturing
  • Data Centers and Server Rooms
  • Building and Construction
  • Transportation and Infrastructure

Perforated Cable Tray Manufacturers in India

India is home to numerous well-known and reputable manufacturers of perforated cable trays. Some leading manufacturers include:

  • Air Brill: Provides high-quality perforated cable trays with excellent corrosion resistance.
  • Tata Steel: Offers a range of perforated cable trays in various materials and sizes.
  • JSW Steel: Provides high-quality perforated cable trays with excellent corrosion resistance.
  • SAIL: Manufactures perforated cable trays in accordance with international standards.
  • Bharat Steel: Offers a wide range of perforated cable trays for various industrial applications.
  • Hindustan Cable: Provides high-quality perforated cable trays for power transmission and distribution.

Conclusion

Perforated cable trays are an essential component of modern cable management systems, offering improved safety, efficiency, and cost-effectiveness. With various types, sizes, and materials available, industries can choose the best solution for their specific requirements.


As India continues to grow as a hub for manufacturing and supply, businesses can rely on local manufacturers and suppliers to meet their perforated cable tray requirements. By investing in high-quality perforated cable trays, industries can ensure reliable and efficient power distribution, ultimately driving growth and success.

As we've explored in this blog, understanding the types, sizes, materials, and applications of perforated cable trays is extremely important for making informed decisions. Whether you're designing a new system or upgrading an existing one, considering perforated cable trays can make a significant difference.


With top manufacturers and suppliers in India offering high-quality products, there's never been a better time to harness the power of perforated cable trays. By adapting to these innovative solutions, you can ensure a safer, more efficient, and more organized cable management system that meets the demands of today's fast-paced world.
